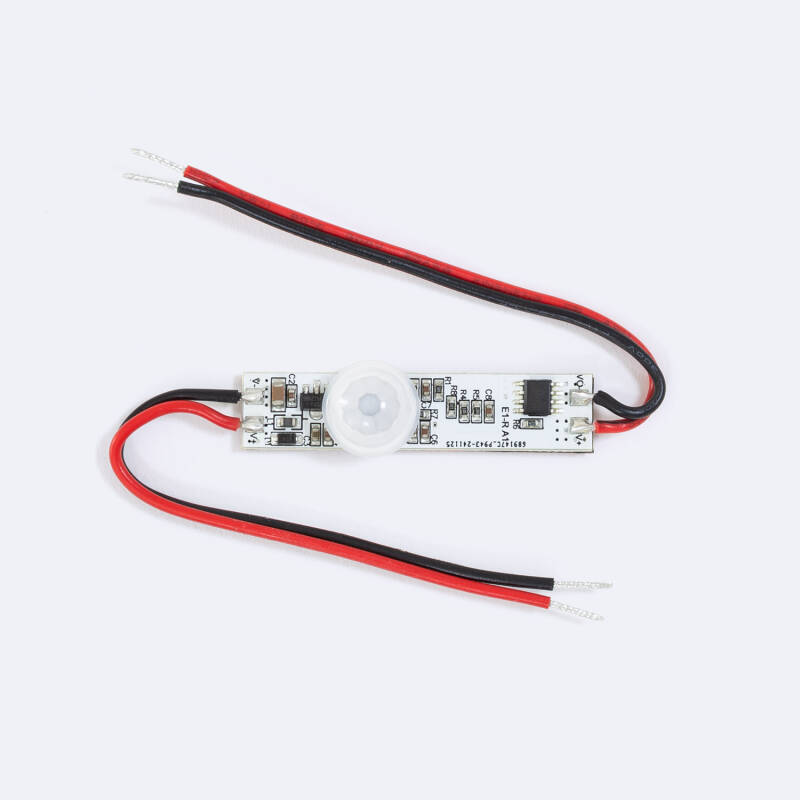

Mini 120º PIR Motion Detector 12/24V DC Monochrome LED Strips
Ref. Lighting Direct: E1609
Colour White
VAT not included £7.91
£9.49
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lighting Direct we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Width11 mm
- Height12 mm
- Depth50 mm
Downloads
Instruction Manual
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassII
- Max Wattage72 W
- Voltage Range12V DC, 24V DCVoltage level required for the product to function correctly.
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- Detection Range120 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorPIR
- Sensor TypePIR
Product Data
- Product FormatPIR Light Controller
Product Information
- BrandLyco
- CertificatesCE, RoHS, FCC
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Key Features
- Mini 120º PIR motion detector for LED strip.
- Ideal solution to control 12/24V DC monochrome LED strips, allows you to turn on the LED strip without having to touch anything.
- After 30 seconds if it does not detect motion, it switches off.

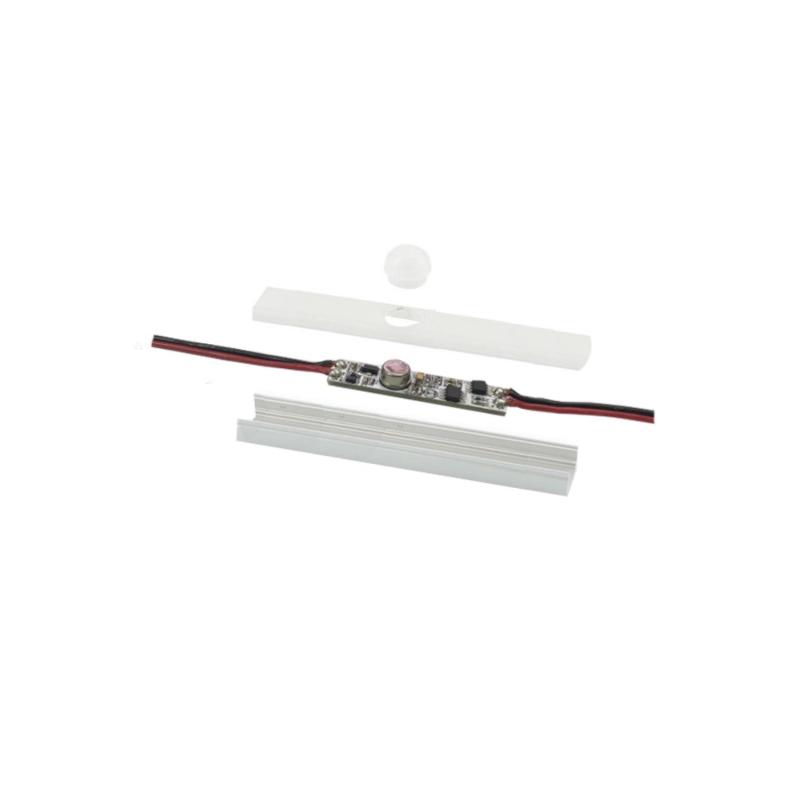

- Can be installed in the same profile as the LED strip thanks to its small size.
- Maximum Power: 36 W (12V) // 72W (24V)
- Colour: White
- Material: Plastic
- Guarantee: 3 years guarantee.
- IP Rating: IP20, Class II
- Detection: PIR Movement Sensor has up to 3 meters and 120° detection range. No manual override.
- Dimensions:
Overall - H 90 x W 85 x D 10mm
Description
This Mini 120º PIR Motion Detector for LED Strip is the ideal solution to control 12/24V DC monochrome LED strips as it allows the user to turn on the LED strip without having to touch anything. After 30 seconds if it does not detect presence, it switches off.
Characteristics of the Mini 120º PIR Motion Detector for LED Strip
The Mini 120º PIR Motion Detector can be installed in the same profile as the LED strip thanks to its small size.
