This product is discontinued

Below you can find the substitute product or some equivalents.

If you have any queries, please call us on telephone 0345 646 1137.

Dimensions

Depth162 mm
Width33 mm
Height52 mm

Certificates and Stamps

Technical Specifications

Electrical Features
- Current Intensity5 A
- Electrical Insulation ClassII
- Frequency50-60 Hz
- It is the amount of voltage the product delivers to its components, such as LEDs or connected devices, for operation. This value is crucial to ensure safe and efficient operation.
  Output Voltage12V DC
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
- Wattage60 W
Product Data
- Product FormatTransformer
Materials and Finishes
- ColourGrey
- Fitting MaterialAluminium
Mechanical Features
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP67
- LocationOutdoor, Indoor
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years

Description

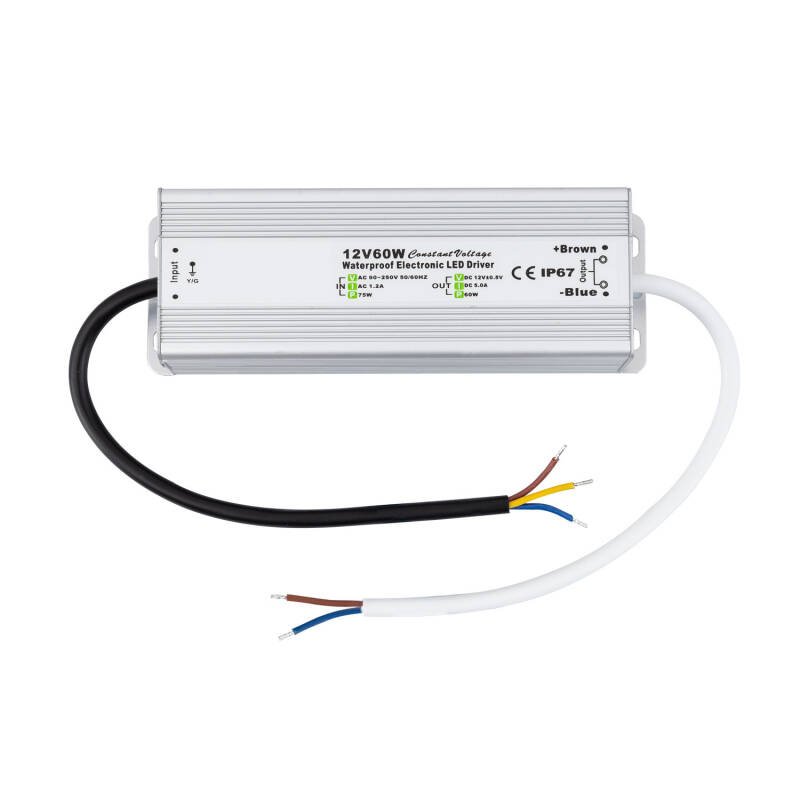

This AC to DC transformer, with IP67 Protection, provides a 12V DC output at 5A.

* It’s capable of withstanding 60W peaks and it's suitable for permanent charges of up to 48W.
