IP65 1000lm/m 10mm Cut every 5cm CRI90 2200K
Ref. Lighting Direct: NLY0005282
Premium range
£29.99Colour Temperature Candlelight 2200K
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lighting Direct we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Width10 mm
- Height4.5 mm
Downloads
manual_tiras_led_6_idiomas
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassIII
- Light SourceCOB
- Type Of DimmingController
- Voltage Range24V DCVoltage level required for the product to function correctly.
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- Cut Points5 cmMeasurement at which the product can be cut.
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesEDGE-10
Product Data
- Product FormatLED Strip
Materials and Finishes
- ColourWhite
- Fitting MaterialSilicone, PCB
LED Features
- Colour Rendering Index90Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature2200KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Light ColourCandlelight
- Luminosity Per Meter1000 lm/m
- Luminous Efficiency100 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Number of LEDs Per Metre320 led/m
- Power Per Meter10 W/m
Key Features
Description
This product is an LED strip featuring COB technology, measuring 5 metres in length with a 24V DC voltage supply and a power consumption of 10W per metre.
General information about 5m 24V LED Strip COB 320LED/m 10W/m
This LED strip is designed for both indoor and outdoor use, with an IP65 rating providing protection against dust and water jets. It is composed of a flexible PCB and silicone materials, incorporating 320 COB LEDs per metre for continuous lighting. The strip operates at 24V DC and includes a controller for dimming functionality.
Design and visual presence

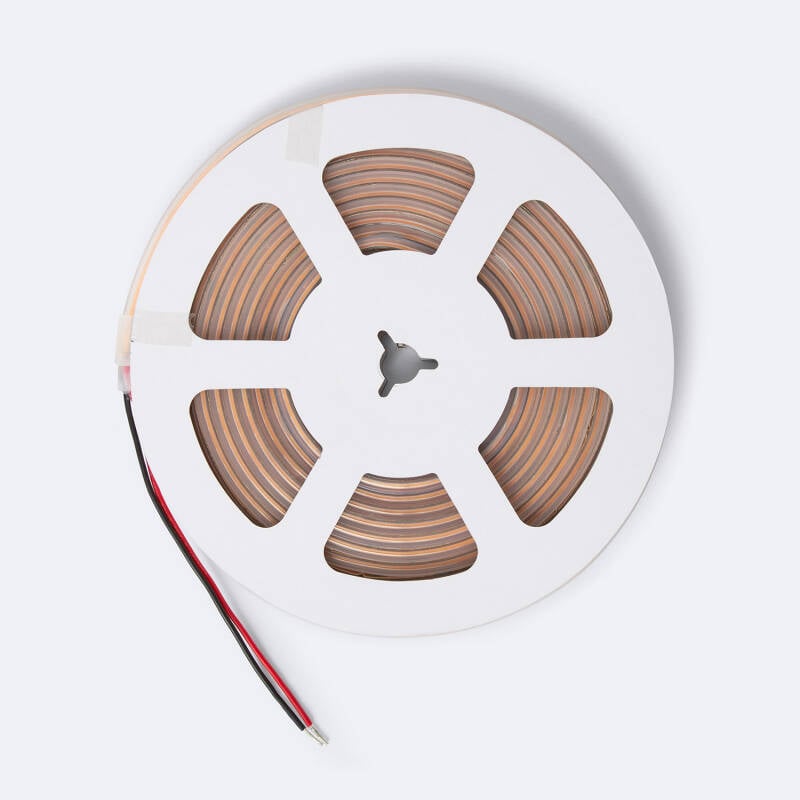

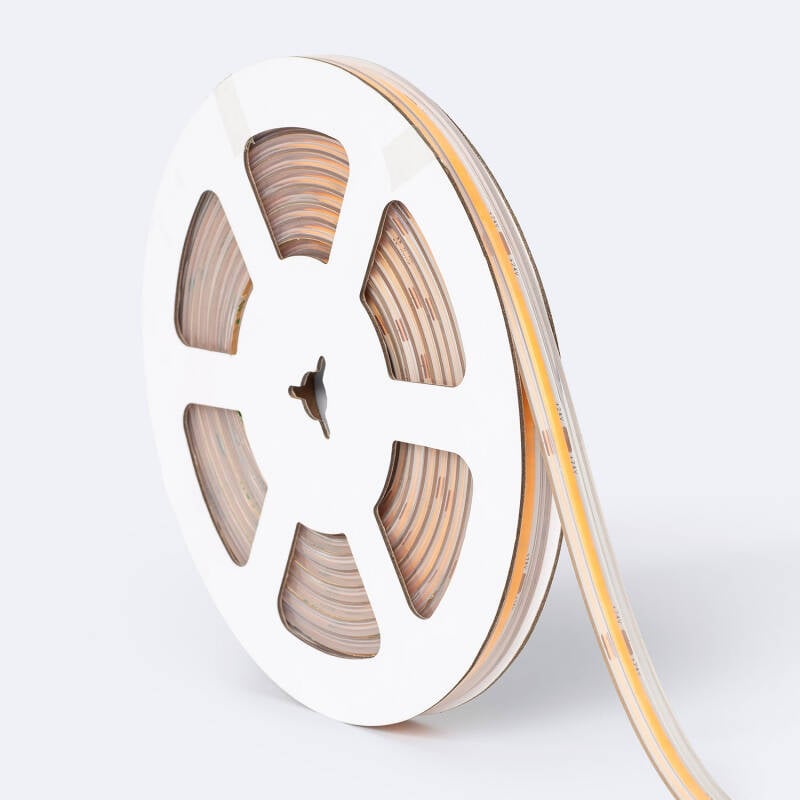

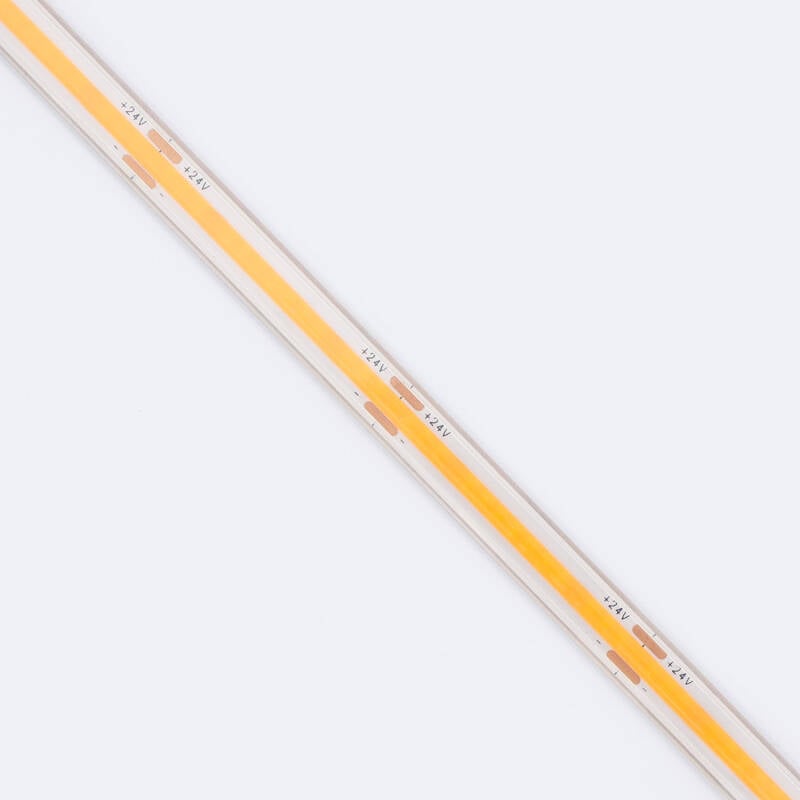

The LED strip is presented in a flexible, narrow format measuring 4.5 mm by 10 mm in cross-section, rolled onto a spool for ease of handling and installation. The strip is predominantly white in colour and features visible copper connection points marked with +24V indicators.
Use and application
This LED strip integrates into ceiling lighting compositions where flexible linear illumination is required. Its IP65 rating allows installation in environments exposed to moisture, making it suitable for diverse decorative and functional lighting projects.
Key benefits
- High density of 320 COB LEDs per metre for continuous light output.
- IP65 protection rating suitable for indoor and outdoor applications.
- Flexible design with a narrow 4.5 mm x 10 mm profile.
- Compatible with dimming controllers for adjustable lighting.
- Operates at 24V DC power supply.
Installation and maintenance
Installation on ceiling surfaces should follow the indicated mounting system. Disconnect the power supply before any intervention to ensure safety.
