IP20 1100lm/m 8mm Cut every 3.2cm CRI90 220K
Ref. Lighting Direct: E50166
Colour Temperature Candlelight 2200K
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lighting Direct we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height2 mm
- Width8 mm
Downloads
manual_tiras_led_6_idiomas
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassIII
- Light SourceSMD
- Replaceable Light SourceNo
- Type Of DimmingController
- Voltage Range24V DCVoltage level required for the product to function correctly.
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- Cut Points3.2 cmMeasurement at which the product can be cut.
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesW-LITE
Product Data
- Product FormatLED Strip
Materials and Finishes
- ColourWhite
- Fitting MaterialPCB
LED Features
- Colour Rendering Index90Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature2200KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Light ColourCandlelight
- Luminosity Per Meter1100 lm/m
- Luminous Efficiency110 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Number of LEDs Per Metre256 led/m
- Power Per Meter10 W/m
Key Features
Description
This LED strip features a 5-metre length with a 24V DC power supply, constructed on a PCB material and equipped with SMD light sources.

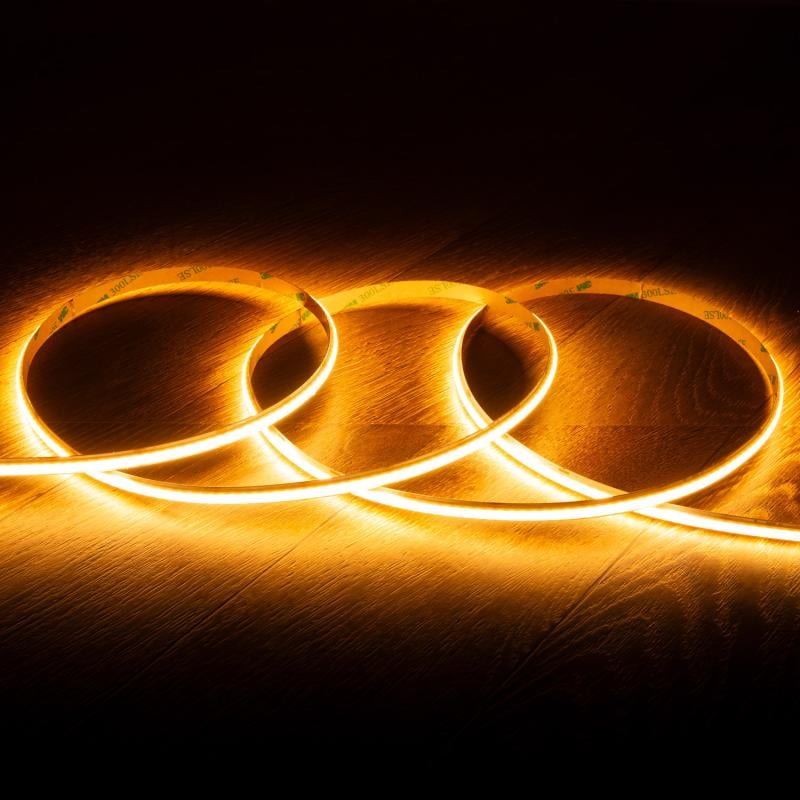

General information about 5m 24V LED Strip WCOB 256LED/m 10W/m
This product is a LED strip designed for decorative ceiling lighting applications. It consists of a flexible strip measuring 2 mm by 8 mm in cross-section and 5 metres in length. The strip operates at 24V DC and includes 256 LEDs per metre with a power consumption of 10W per metre. It requires a controller for dimming functionality.
Design and visual presence

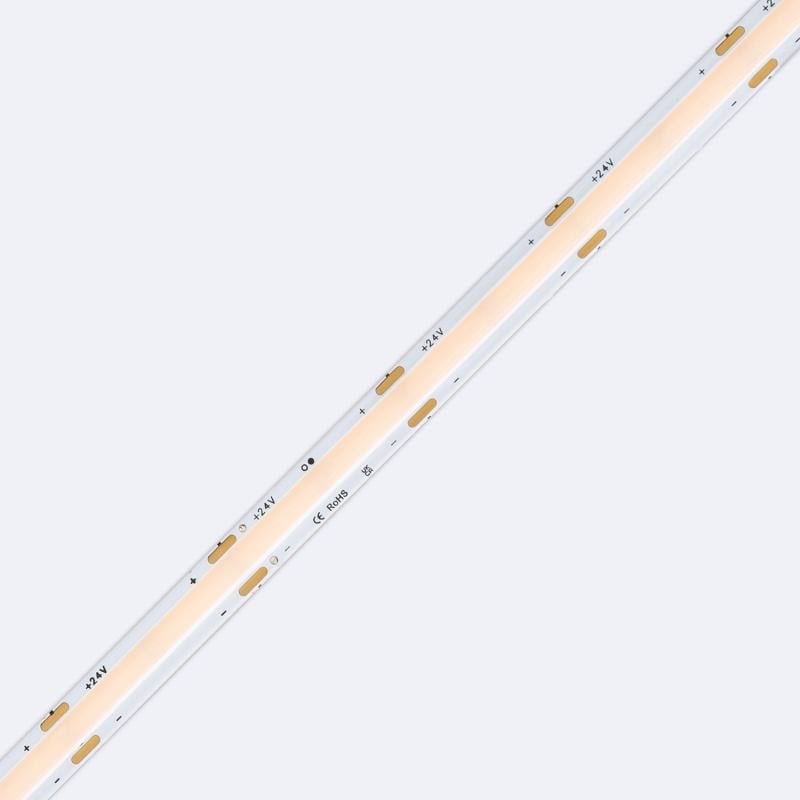

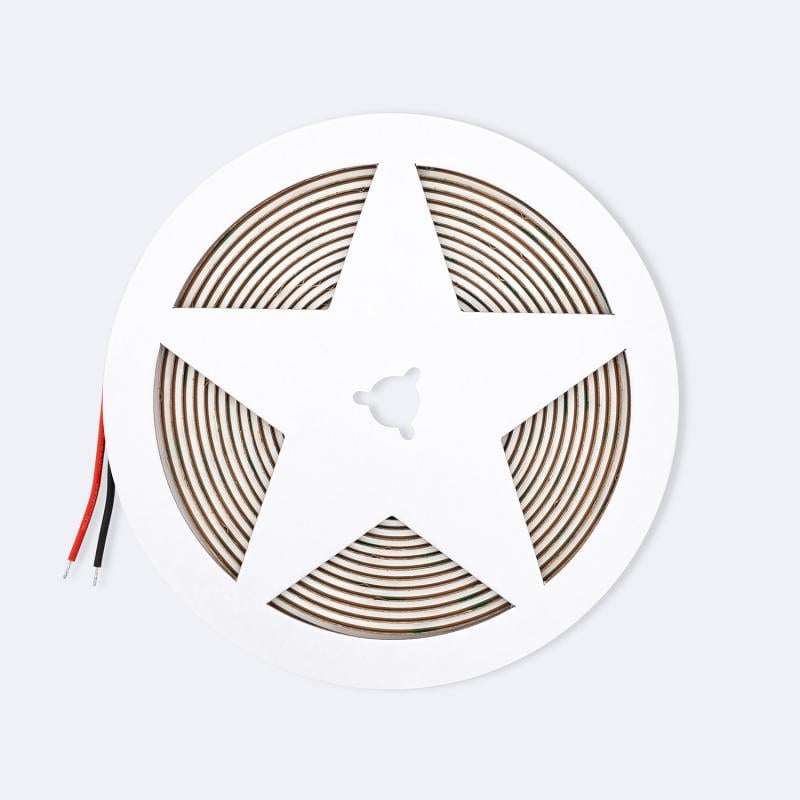

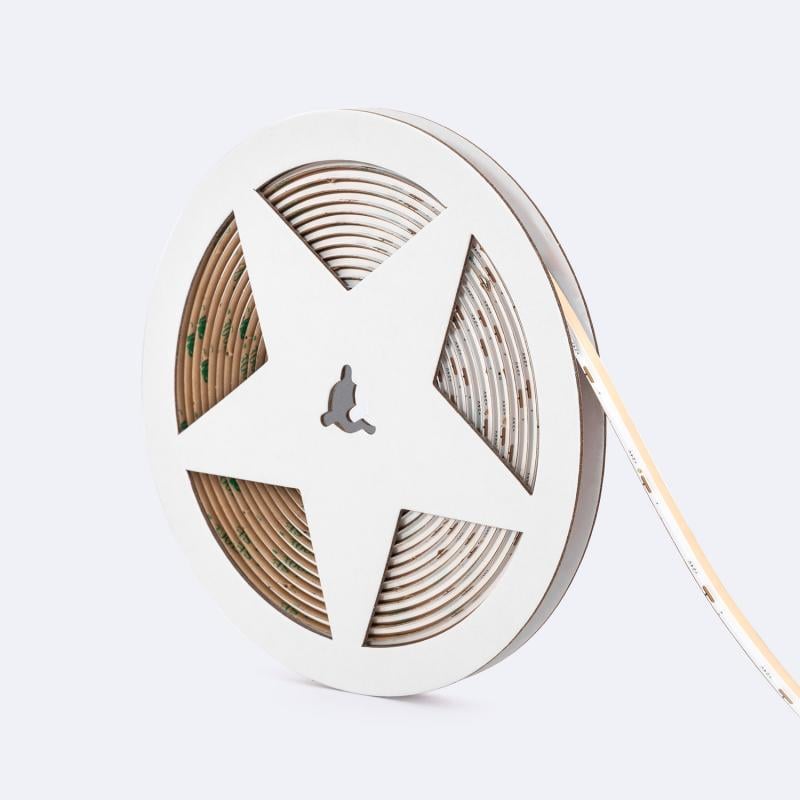

The LED strip is presented rolled on a circular spool with a star-shaped cutout in the centre. The strip itself is white in colour and displays evenly spaced SMD LEDs along its length.
Use and application
This LED strip is intended for indoor use and serves as a source of decorative ceiling lighting, suitable for integration in various lighting compositions.
Key benefits
- Length of 5 metres for extended lighting coverage.
- Operates at 24V DC for consistent power supply.
- Includes 256 SMD LEDs per metre for uniform illumination.
- Dimming control possible via a compatible controller.
- Constructed on PCB material ensuring flexibility.
